Server-to-Server (S2S) Reward Postback

Functional Overview

The Carty Developer Platform provides the Server-to-Server (S2S) Reward Postback feature, designed to enhance the security of reward distribution for rewarded video ads.

By enabling this feature, the reward issuance logic is upgraded from a simple "client-side callback" to "server-side validation." The Carty server pushes a fulfillment notification directly to the developer's server. This effectively prevents fraudulent activities, such as "reward mining" through manipulated client-side data, ensuring the fairness of the incentive system and the integrity of business data.

Workflow

Enable S2S Postback

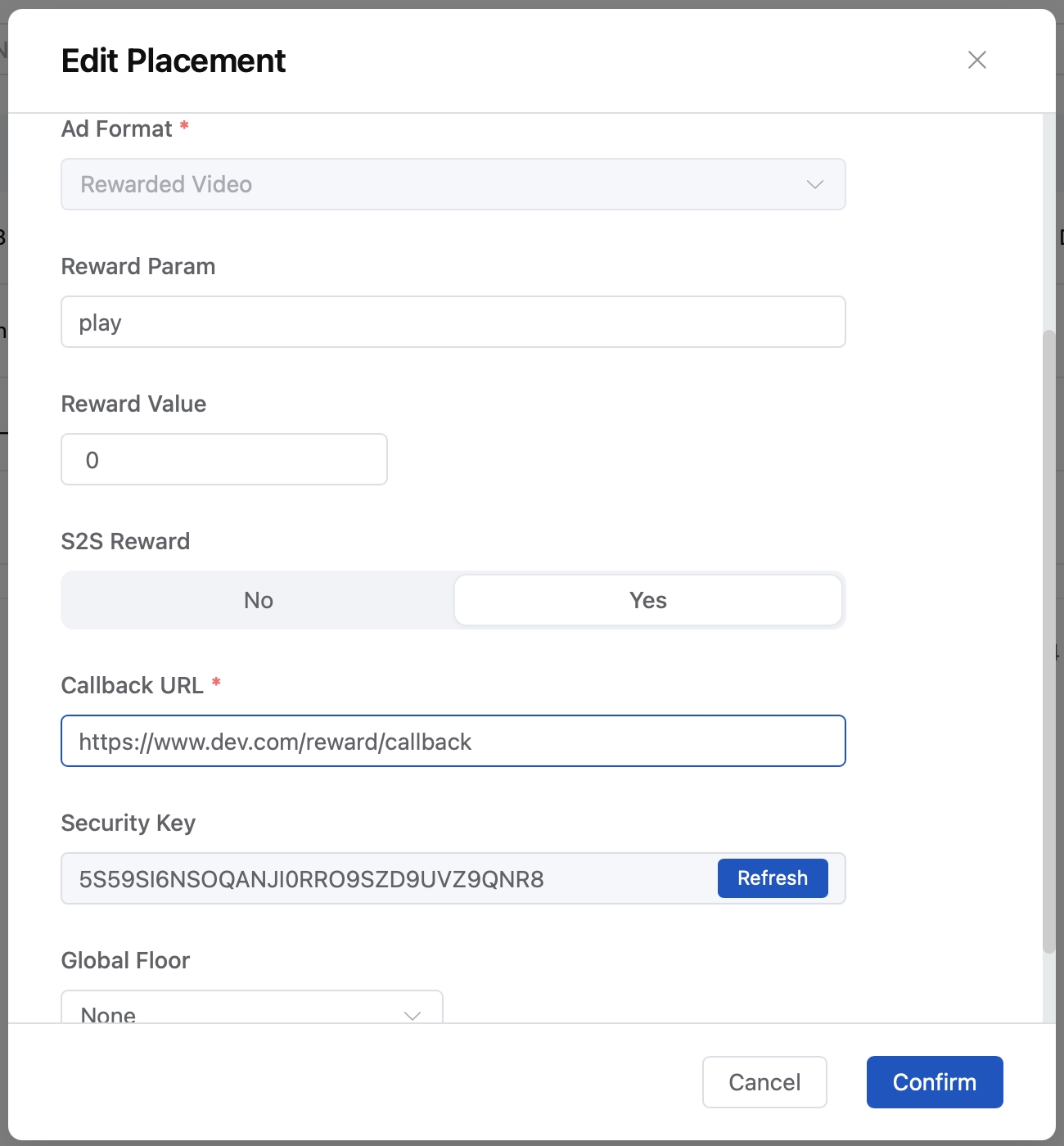

• Developers must enable Server-to-Server Reward Postback for specific rewarded video ad placements in the Carty Dashboard and configure a valid endpoint URL.

• Example Callback URL: https://www.dev.com/reward/callback

Parameter Passing

• When a user starts watching a rewarded video, the developer must pass a unique user identifier (user_id) and optional custom business parameters (extra) through the SDK.

Server Notification

• Upon successful completion of the video, the Carty server sends an HTTP GET request to the developer's configured URL.

Validation & Fulfillment

• The developer's server receives the request, validates the signature (sign), and checks the transaction uniqueness (trans_id). After successful verification, the reward is issued on the business layer, and a response is returned in the specified format.

Callback Protocol Specification

Request Definition

• Method: HTTP GET

• Character Encoding: UTF-8

Field Definitions :

Parameter	Type	Definition	Description
user_id	String	User ID	The unique business user ID passed via the client SDK.
trans_id	String	Transaction ID	A unique identifier generated by Carty for each specific view.
rewarded_name	String	Reward Name	The name of the reward configured in the dashboard.
rewarded_value	Int	Reward Amount	The quantity of the reward configured in the dashboard.
placement_uid	String	Placement ID	The unique ID of the ad placement assigned by Carty.
sign	String	Security Signature	Used to verify the authenticity of the request.
extra	String	Custom Parameters	Pass-through fields provided by the developer during the SDK call (ensure URL encoding).

• Request Example:

https://www.dev.com/reward/callback?extra=%7B%22name%22%3A%22user1%22%7D&placement_uid=p201156097019213&rewarded_name=play&rewarded_value=10&sign=0861c6e4e4a83c15a5bcbb028bb1f0a369acf9257156226f12da4315a1579831&trans_id=cf9257156226&user_id=a5bcbb0

Security & Authentication

To ensure the callback request originates from Carty and has not been tampered with, developers should verify the sign field.

• Rule: Concatenate the security_key and trans_id using a colon (:) and perform a SHA-256 hash calculation.

• Formula: sign = sha256("security_key:trans_id")。

• Credentials: The security_key can be retrieved from the Ad Placement details page on the Carty Dashboard.

• Signature Example:

security_key: E5F9F080B1F534C8992C6D81EBBD3E89
trans_id: f2ee29c410b86bf6b

Calculation Result (Sign): e9957ec57285c4e3736da2c5ed09ff328883184c12b5ac4a53a63758b4fdfb6c

Response Specification

After processing the callback, the developer's server must return a JSON response to confirm successful receipt.

Parameter	Type	Definition	Description
is_verify	Boolean	Verification Result	The result of the developer's server-side validation.
code	Int	Status Code	0 for success; non-zero for business error codes.
msg	String	Message	Brief description of the processing result or error reason.

• Response Example:

{
    "is_verify": true,
    "code": 0,
    "msg": "success"
}

Retry Mechanism

• Trigger Conditions: Non-HTTP 200 response, response timeout (2 seconds).

• Frequency: The Carty server will attempt up to 3 retries to ensure high delivery rates.

Client SDK Integration

Developers must configure the callback context via the SDK interface before loading or displaying rewarded video ads.

Android Implementation

• Java

// Set the userId before load rewarded ad
CTGlobalSettings.getInstance().setExternalUid("your_uid");

// Set extraParams when load rewarded ad
Map<String, Serializable> extraParams = new HashMap<>();
extraParams.put("key", "value");
CTAdRequest adRequest = new CTAdRequest.Builder()
        .setPlacementId("your_placement_id")
        .setExtraParams(extraParams)
        .build();
CTReward ctReward = new CTReward(adRequest);
ctReward.setRewardAdListener(listener);
ctReward.loadAd();

• Kotlin

// Set the userId before load rewarded ad
CTGlobalSettings.getInstance().externalUid = "your_uid"

// Set extraParams when load rewarded ad
val extraParams = hashMapOf<String, Serializable>()
extraParams["key"] = "value"
val adRequest = CTAdRequest.Builder()
    .setPlacementId(placementId)
    .setExtraParams(extraParams)
    .build()
ctReward = CTReward(adRequest)
ctReward?.apply {
    setRewardAdListener(listener)
    loadAd()
}

iOS Implementation

• Objective-C

//Before show rewardedVideo ad

//set user_id
[CartyADSDK sharedInstance].userid = @"your_user_id";

//set extra (CTRewardedVideoAd API)
self.rewardedVideoAd.customRewardString = @"your_reward_string";

[self.rewardedVideo showAd:self];

• Swift

//Before show rewardedVideo ad

//set user_id
CartyADSDK.sharedInstance().userid = "your_user_id"

//set extra (CTRewardedVideoAd API)
rewardedVideoAd.customRewardString = "your_reward_string"

rewardedVideoAd.show(self)
